Onten Otn-95117 Type-C Multi-Function Dock Station.

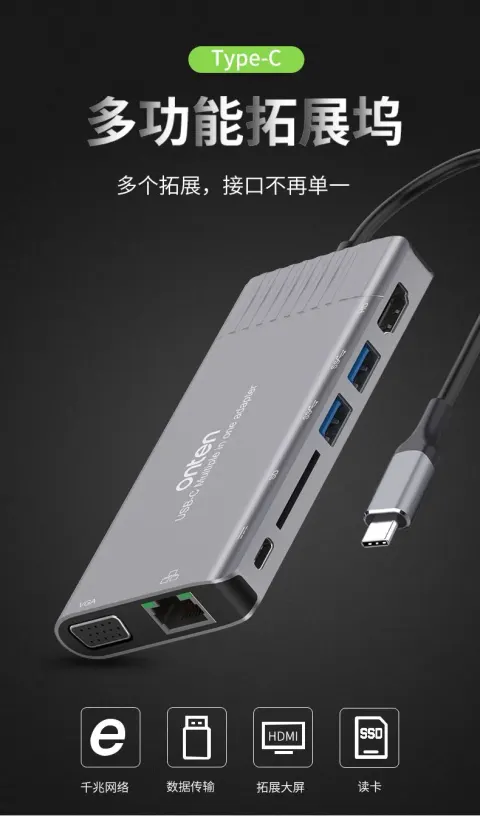

The Onten OTN-95117 Type-C Multi-Function Dock Station is a comprehensive multi-port desktop and travel expansion solution designed to transform a single USB Type-C or Thunderbolt 3/4 port on laptops, MacBooks, tablets, and smartphones into a complete workstation hub. Housed in a durable, heat-dissipating anodized aluminum alloy casing, this docking station provides high-definition dual-video connectivity (4K HDMI and 1080p VGA), SuperSpeed USB 3.0 data transfers, Gigabit Ethernet RJ45 network connectivity, simultaneous SD and microSD/TF card reading, 3.5mm TRRS audio, and up to 100W USB-C Power Delivery (PD 3.0) pass-through charging.
Highlights
- Multi-Port Expansion Architecture
- Dual Video Output (4K HDMI & 1080p VGA)
- 100W Power Delivery (PD 3.0)
- Gigabit Ethernet RJ45 Network Adapter
Key specs
- Ports
- 8
- Interface
- USB-C
- SSD Support
- No
- Connectivity
- Wired
Product Overview
The Onten OTN-95117 Type-C Multi-Function Dock Station is a comprehensive multi-port desktop and travel expansion solution designed to transform a single USB Type-C or Thunderbolt 3/4 port on laptops, MacBooks, tablets, and smartphones into a complete workstation hub. Housed in a durable, heat-dissipating anodized aluminum alloy casing, this docking station provides high-definition dual-video connectivity (4K HDMI and 1080p VGA), SuperSpeed USB 3.0 data transfers, Gigabit Ethernet RJ45 network connectivity, simultaneous SD and microSD/TF card reading, 3.5mm TRRS audio, and up to 100W USB-C Power Delivery (PD 3.0) pass-through charging.
Key Technical Features & Highlights
Multi-Port Expansion Architecture

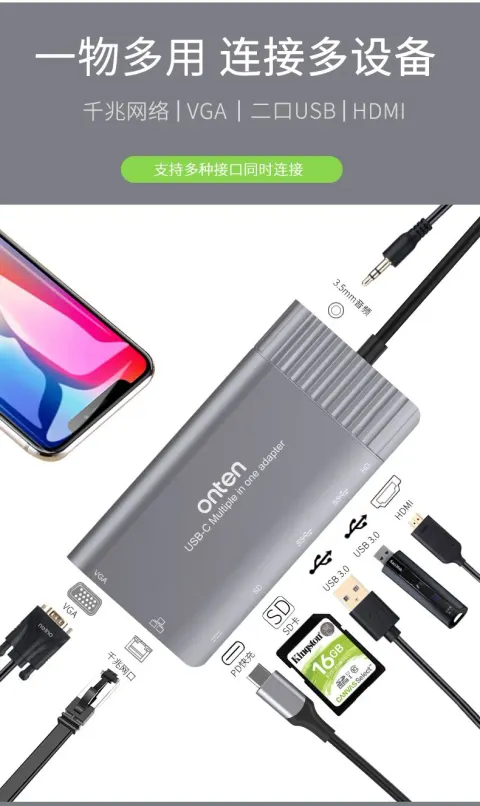

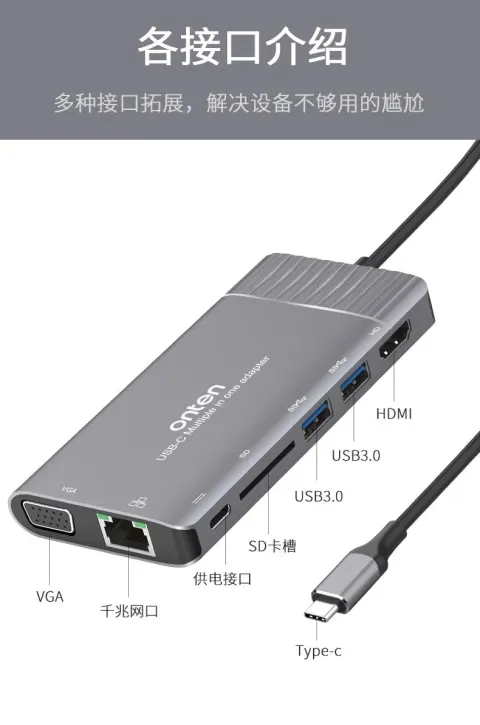

Integrates 4K HDMI, 1080p VGA, Gigabit RJ45 Ethernet, USB 3.0 ports, SD/TF card slots, 3.5mm audio jack, and USB-C PD input into a single portable adapter.
Dual Video Output (4K HDMI & 1080p VGA)
Delivers 4K Ultra HD (3840x2160 @ 30Hz) video via HDMI and 1080p Full HD (1920x1080 @ 60Hz) via VGA, supporting both mirrored and extended desktop display configurations.
100W Power Delivery (PD 3.0)
Supports pass-through fast charging up to 100W (20V/5A), ensuring laptops remain charged under heavy multi-peripheral use.
Gigabit Ethernet RJ45 Network Adapter
Provides reliable, low-latency 10/100/1000 Mbps wired internet connectivity for online gaming, video conferencing, and large file transfers.
Dual Card Reader & SuperSpeed Data Ports
Features simultaneous reading for SD and TF (microSD) flash memory cards alongside 5Gbps USB 3.0 ports for external storage drives and peripherals.
Aluminum Alloy Heat-Dissipating Shell
Compact, anti-fingerprint aluminum housing ensures rapid thermal dissipation and EMI shielding for uninterrupted performance.
Key specs
- Ports
- 8
- Interface
- USB-C
- SSD Support
- No
- Connectivity
- Wired
Technical Specifications
- Product Model
- Onten OTN-95117
- Interface Input
- USB Type-C Male (USB 3.1 Gen 2 / Thunderbolt 3/4 Compatible)
- HDMI Output
- Up to 4K UHD (3840 x 2160 @ 30Hz), 1080p @ 60Hz
- VGA Output
- Up to 1080p Full HD (1920 x 1080 @ 60Hz)
- USB Data Ports
- USB 3.0 Type-A (Up to 5Gbps SuperSpeed Data)
- Ethernet Port
- RJ45 Gigabit Ethernet (10/100/1000 Mbps Auto-Sensing)
- Card Reader Slots
- SD Card Slot + MicroSD (TF) Card Slot (Simultaneous Read/Write)
- Audio Interface
- 3.5mm TRRS Headphone / Microphone Combination Jack
- Power Delivery (PD)
- USB-C Female PD 3.0 Port (Supports up to 100W Pass-Through Charging)
- Housing Material
- Anodized Aluminum Alloy Shell
- OS Compatibility
- Windows 11 / 10 / 8 / 7, macOS / iPadOS, ChromeOS, Android (Samsung DeX)
System Requirements & Operational Notes
DisplayPort Alt Mode Required
Video output over HDMI and VGA requires the host device's USB-C port to support DisplayPort Alternate Mode or Thunderbolt 3/4.
Dual Display Resolution
When HDMI and VGA ports are used simultaneously, both displays output in mirrored/extended mode at 1080p @ 60Hz.
Plug-and-Play
Driverless operation across major operating systems without external software installation.
