Onten Otn-5138HV VGA to HDMI + VGA Adapter with Audio

₦10,400

The Onten OTN-5138HV (OTN-5138 / OTN-U5138HV) VGA to HDMI + VGA Dual Output Video Adapter with Audio is an essential display conversion and splitting solution engineered to connect legacy VGA-equipped host computers, laptops, desktop PCs, and TV boxes to modern HDMI HDTVs, monitors, and VGA projectors. Built with an advanced digital video conversion processing chipset, it converts analog VGA video signals into crisp, high-definition digital HDMI video and synchronized VGA output, supporting Full HD 1080p (1920x1080 @ 60Hz) resolution across both display outputs simultaneously.

Highlights

  • Dual Simultaneous Display Output (HDMI + VGA)
  • Full HD 1080p Video Resolution
  • Integrated 3.5mm Audio Embedding
  • Micro-USB 5V Auxiliary Power Input

Key specs

Connectivity Type
Wired
Input Interface
VGA
Output Interface
HDMI, VGA
Plug and Play
No
Audio Support
Yes
HDCP Support
No
01

Product Overview

The Onten OTN-5138HV (OTN-5138 / OTN-U5138HV) VGA to HDMI + VGA Dual Output Video Adapter with Audio is an essential display conversion and splitting solution engineered to connect legacy VGA-equipped host computers, laptops, desktop PCs, and TV boxes to modern HDMI HDTVs, monitors, and VGA projectors. Built with an advanced digital video conversion processing chipset, it converts analog VGA video signals into crisp, high-definition digital HDMI video and synchronized VGA output, supporting Full HD 1080p (1920x1080 @ 60Hz) resolution across both display outputs simultaneously.

Equipped with a 3.5mm AUX audio input cable, the OTN-5138HV seamlessly embeds analog stereo sound into the HDMI video signal for synchronized audio-video playback through connected TV or display speakers. To ensure uncompromised signal stability and prevent video dropouts, the adapter features an auxiliary Micro-USB 5V power input port, supplying dedicated power for power-constrained host graphics ports and long display cable installations. Housed in a durable, heat-dissipating casing with driverless plug-and-play installation, it offers an all-in-one bridge between legacy VGA equipment and modern display setups.

02

Key Technical Features & Highlights

Dual Simultaneous Display Output (HDMI + VGA)

Converts a single VGA input into dual output ports (1x HDMI Female and 1x VGA Female), enabling simultaneous video streaming to an HDMI TV/monitor and a VGA projector or second display.

Full HD 1080p Video Resolution

Supports video resolutions up to 1920x1080 @ 60Hz (1080p Full HD) and 720p, delivering razor-sharp video reproduction with zero latency or frame drops.

Integrated 3.5mm Audio Embedding

Includes a 3.5mm AUX stereo audio cable that captures sound from the host PC's audio output and embeds it directly into the HDMI signal for unified audio-video streaming.

Micro-USB 5V Auxiliary Power Input

Features a Micro-USB port for connecting an external 5V power supply, guaranteeing stable video signal transmission and eliminating screen flickering or power starvation on low-power VGA ports.

Universal Driverless Plug & Play

Instant setup requiring no software drivers or external power configurations across Windows 11/10/8/7, macOS, Linux, and ChromeOS devices.

03

Key specs

Connectivity Type
Wired
Input Interface
VGA
Output Interface
HDMI, VGA
Plug and Play
No
Audio Support
Yes
HDCP Support
No
04

Technical Specifications

Product Model
Onten OTN-5138HV / OTN-U5138HV
Product Type
VGA Male to HDMI Female + VGA Female Adapter with Audio
Input Interface
1x VGA (HD15 / D-Sub) Male, 1x 3.5mm AUX Audio Plug, 1x Micro-USB Power Input
Output Interfaces
1x HDMI Type-A Female, 1x VGA (HD15) Female
Video Resolution Support
Up to 1080p Full HD (1920x1080 @ 60Hz), 720p, 1280x1024, 1024x768
Display Output Mode
Simultaneous Dual Display Mirroring (HDMI + VGA Output)
Audio Transmission
3.5mm Stereo Audio Input embedded into HDMI Digital Output
Power Supply Input
Micro-USB 5V DC Auxiliary Power Port (Micro-USB Cable Included)
Casing Material
Durable ABS / Heat-Dissipating Metal Alloy Casing
Color
Matte Black
System Compatibility
Windows 11 / 10 / 8.1 / 8 / 7 / Vista / XP, macOS, Linux, ChromeOS
Dimensions & Weight
~65mm x 45mm x 15mm; Weight ~55g
05

Applications & Use Cases

Legacy PC & Laptop Video Upgrades

Connect older desktop PCs, laptops, or workstations with VGA output to modern 4K/FHD HDMI Smart TVs, monitors, or displays.

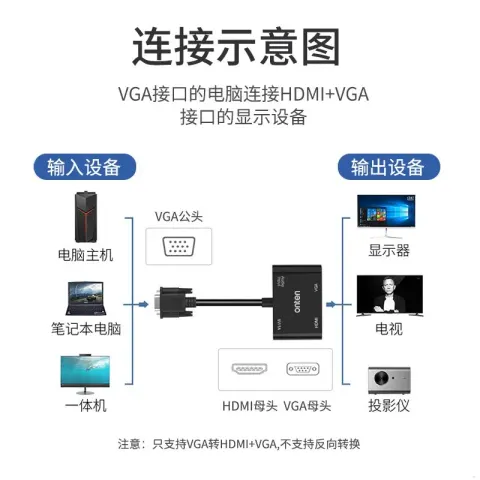

Dual Display & Presentation Setup

Output host VGA video simultaneously to an HDMI display and a VGA classroom or conference room projector.

Home Theater & Gaming Setup

Stream video and 3.5mm stereo sound from legacy TV boxes or desktop PCs directly through HDMI TV speakers.
