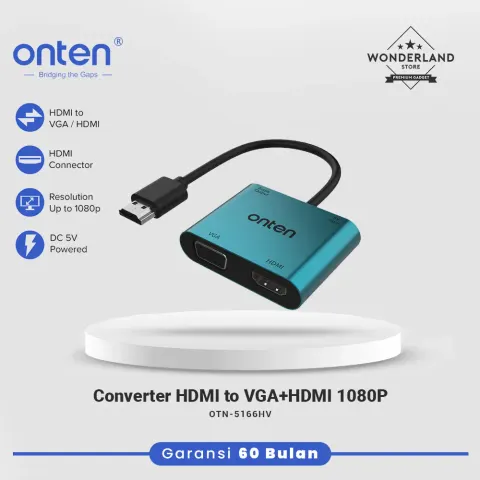

Onten 5166HV HDMI to HDMI + VGA Adapter
The Onten 5166HV (Model: OTN-5166HV) is a high-performance 4-in-1 video converter adapter engineered to convert and split a single HDMI video input into simultaneous HDMI and VGA video outputs alongside dedicated analog audio extraction. Built with an anodized aluminum alloy shell, an integrated 170mm male HDMI pigtail cable, and an auxiliary USB-C power input, the OTN-5166HV allows users to connect modern HDMI devices—such as laptops, desktop PCs, TV boxes, and gaming consoles—to both modern HDMI displays and legacy VGA projectors or monitors simultaneously.
Highlights
- Brand & Model: Onten OTN-5166HV / 5166HV
- Dimensions: 57.5 mm x 43.9 mm x 14.5 mm
- Weight: ~90 g
Key specs
- Input
- HDMI
- Output
- HDMI + VGA
- Plug and Play
- No
- Audio Support
- Yes
- HDCP Support
- No
Product Overview
The Onten 5166HV (Model: OTN-5166HV) is a high-performance 4-in-1 video converter adapter engineered to convert and split a single HDMI video input into simultaneous HDMI and VGA video outputs alongside dedicated analog audio extraction. Built with an anodized aluminum alloy shell, an integrated 170mm male HDMI pigtail cable, and an auxiliary USB-C power input, the OTN-5166HV allows users to connect modern HDMI devices—such as laptops, desktop PCs, TV boxes, and gaming consoles—to both modern HDMI displays and legacy VGA projectors or monitors simultaneously.
Key specs
- Input
- HDMI
- Output
- HDMI + VGA
- Plug and Play
- No
- Audio Support
- Yes
- HDCP Support
- No
Technical Specifications
- Brand & Model
- Onten OTN-5166HV / 5166HV
- Product Type
- 4-in-1 HDMI to HDMI + VGA Multi-Display Video Adapter
- Input Interface
- 1x HDMI Male (Integrated 0.17m / 170mm Cable)
- Output Interfaces
- • 1x HDMI Female Port<br>• 1x VGA Female Port<br>• 1x 3.5mm Aux Stereo Audio Output Port<br>• 1x USB-C (Type-C) Female 5V Auxiliary Power Port
- Video Resolution (HDMI)
- Up to 1080p Full HD (1920x1080@60Hz) / 2K@60Hz
- Video Resolution (VGA)
- Up to 1080p Full HD (1920x1080@60Hz)
- Audio Transmission
- Embedded HDMI audio pass-through + 3.5mm AUX analog extraction
- Power Supply
- Bus-powered (USB-C 5V auxiliary port for power-heavy sources)
- Material / Shell
- Anodized Aluminum Alloy + Heat-resistant ABS
- Dimensions
- 57.5 mm x 43.9 mm x 14.5 mm
- Weight
- ~90 g
- OS Compatibility
- Windows, macOS, ChromeOS, Linux, Android
Key Features & Functionality

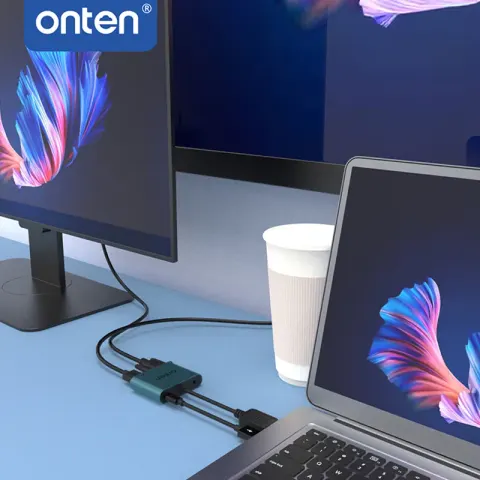

- Simultaneous Dual-Display Mirroring
- Transmits audio/video signals from a single HDMI source to both an HDMI monitor/TV and a VGA projector/display at the same time. - Ideal for corporate boardrooms, classrooms, training halls, and dual-monitor home office setups.
- Dedicated 3.5mm Stereo Audio Output
- Extracts sound from the digital HDMI input stream into a 3.5mm audio jack. - Solves the legacy limitation of VGA cables (which cannot transmit audio) by allowing direct connection to external powered speakers, soundbars, or headphones.
- Auxiliary USB-C 5V Power Input
- Features a dedicated USB-C power port to provide auxiliary power when connecting low-voltage source devices (e.g., TV sticks, game consoles) or running long extension cables.
- Plug-and-Play Driverless Design
- Requires no drivers, external software, or complex setup procedures. - Compact 170mm pigtail design protects host laptop ports from cable strain.
Operating Instructions & Setup
- Connecting Source: Plug the integrated HDMI male cable into your laptop, desktop PC, set-top box, or console.
- Connecting Displays:
- Plug an HDMI cable from the adapter's HDMI female port to your primary monitor/TV. - Plug a VGA cable from the adapter's VGA female port to your secondary monitor/projector.
- Connecting Audio: If using a VGA display, plug a 3.5mm audio cable from the adapter's audio port to your external speakers.
- Powering (Optional): If the display flickers or the source device has low HDMI power output, connect a standard USB-C 5V charger cable to the adapter's USB-C port.
